Padel court measurements: what it is and how to build it defines the standardized 20m x 10m playing area and the specific vertical clearances necessary to construct a high-performance sports venue. Building a club without adhering to these precise specifications often results in structural instability and tournament disqualification. You might spend thousands on a foundation only to realize the glass panels cannot fit into an irregularly sized frame. Our expert guide outlines the exact padel court measurements and engineering standards you need to build a durable, professional-grade facility.

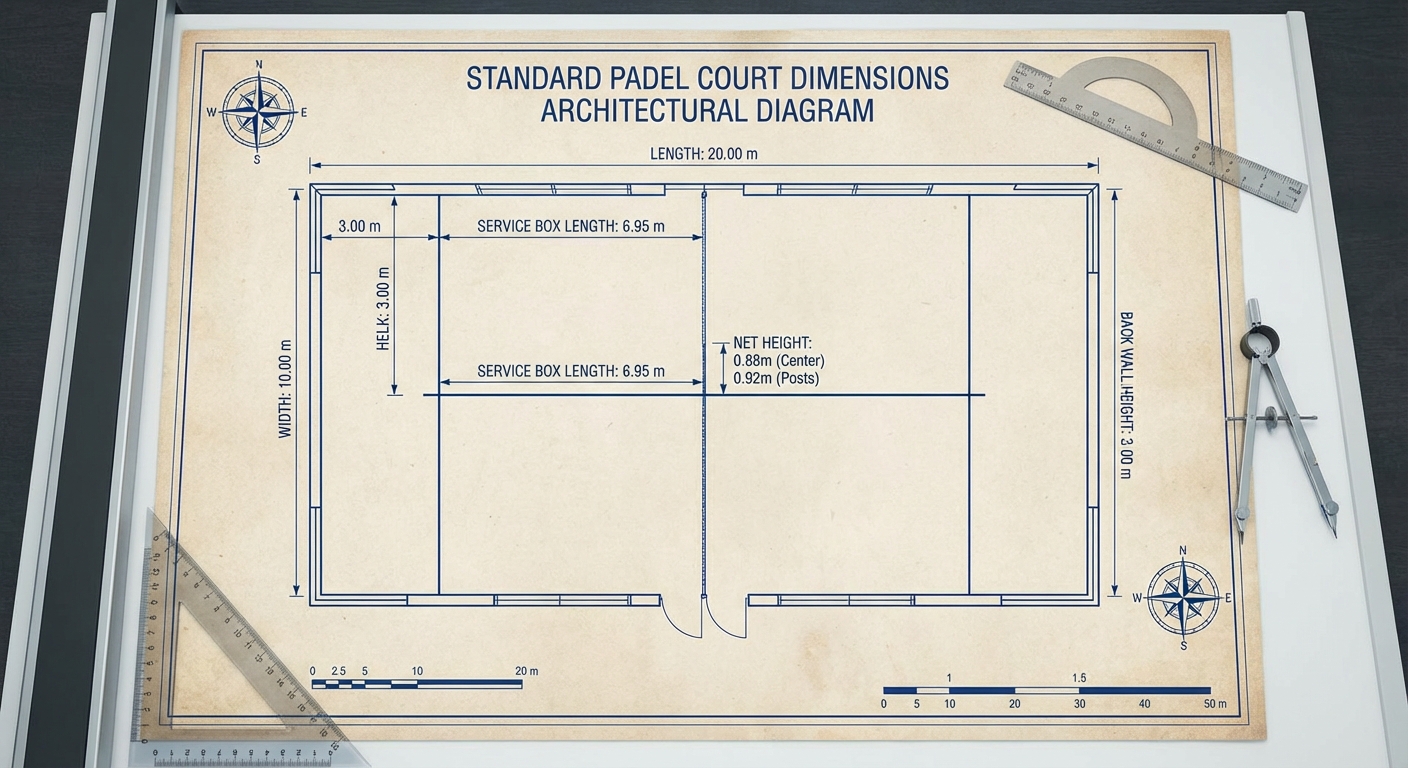

What are the standard padel court measurements?

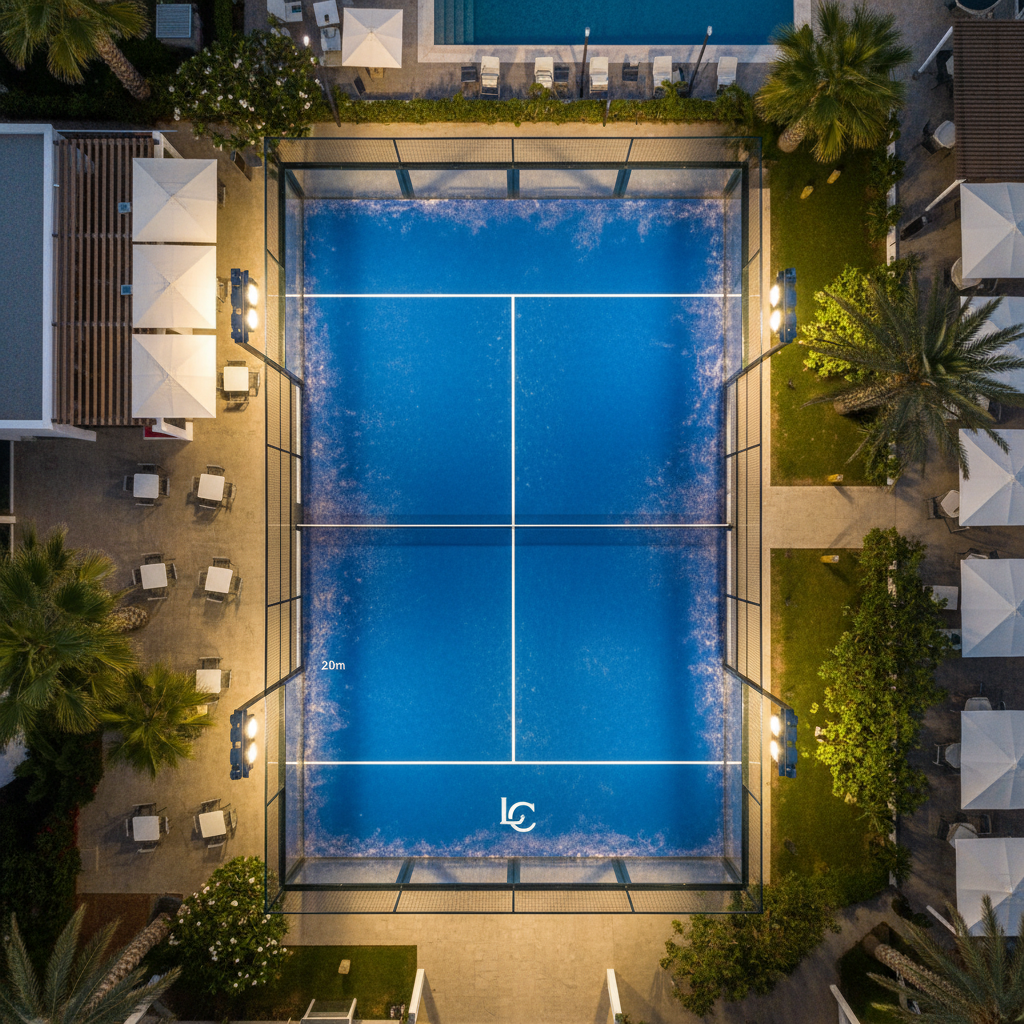

Official regulations state that a padel court must be a rectangle 20 meters long and 10 meters wide. These padel court measurements ensure a consistent playing experience across all international clubs and tournament circuits. The area is split by a central net into two equal 10×10 meter squares for opposing teams.
Understanding the court lines
Every white or yellow line on your turf must be exactly 5 centimeters wide to ensure visibility during fast rallies. The service lines are positioned 6.95 meters from the net to define the legal serving zone for you and your opponents.
- Total playing area: 200 square meters.
- Line width: 0.05 meters.
- Service line distance: 6.95 meters from the net.
Here is the deal…
If your markings are off by even a few centimeters, the ball trajectory becomes unpredictable, and the game loses its professional feel.
Key Takeaway: A 20x10m footprint is the global industry standard for professional doubles play.
| Component | Standard Metric | Imperial Equivalent |
|---|---|---|
| Court Length | 20.00 m | 65.62 ft |
| Court Width | 10.00 m | 32.81 ft |
| Area | 200.00 sqm | 2,152.78 sqft |
Why are precise padel court measurements required?

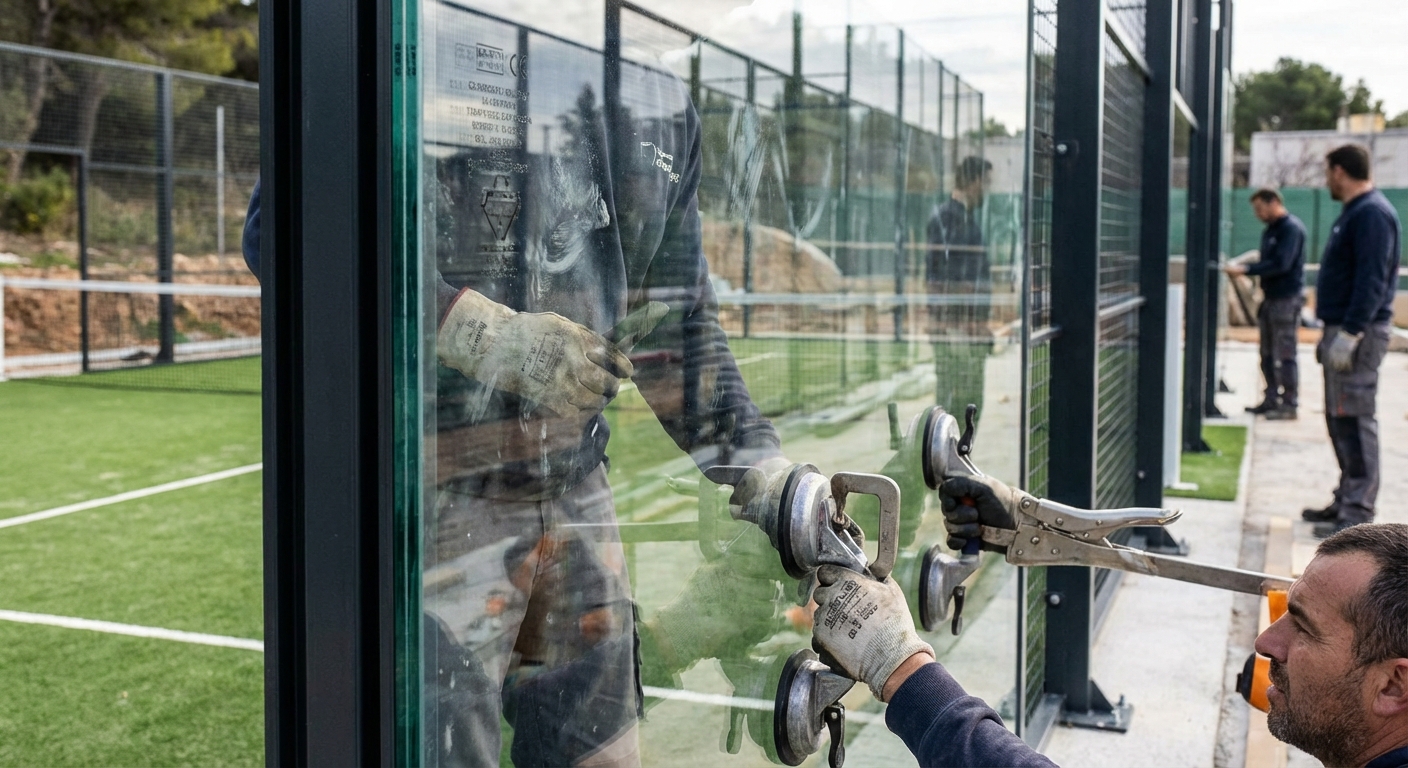

Precise padel court measurements are essential to ensure the 12mm tempered glass panels fit perfectly within the steel support structure. Without exact dimensions, you risk glass breakage and structural failure due to uneven tension across the frame. Correct sizing also allows your facility to host sanctioned International Padel Federation (FIP) events.
Structural safety and stability
The weight of the glass walls requires you to have a perfectly level foundation that matches the frame’s perimeter. Even a minor deviation can lead to permanent structural defects that are expensive for you to rectify post-installation.
- Glass panel width: 2.0 meters per section.
- Pillar spacing: Every 2.0 to 4.0 meters.
- Frame tolerance: Less than 0.5% deviation.
What is the catch?
Poor tolerances destroy the player experience and significantly lower your club’s return on investment.
Key Takeaway: Accuracy minimizes legal liability and maximizes the commercial value of your sports facility.
| Benefit | Impact | Importance |
|---|---|---|
| Glass Safety | No stress points | High |
| FIP Certification | Eligible for events | High |
| Longevity | Reduced repairs | Medium |
How to verify padel court measurements on-site?

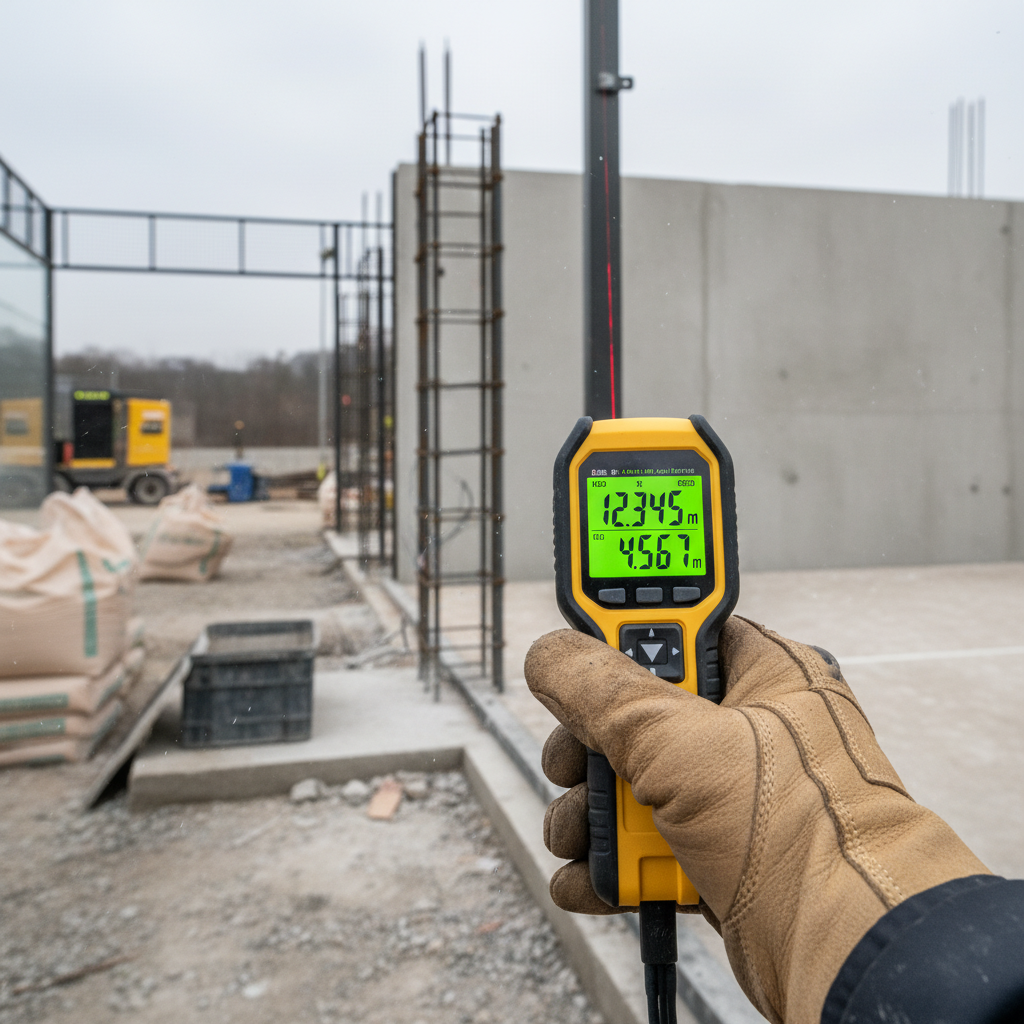

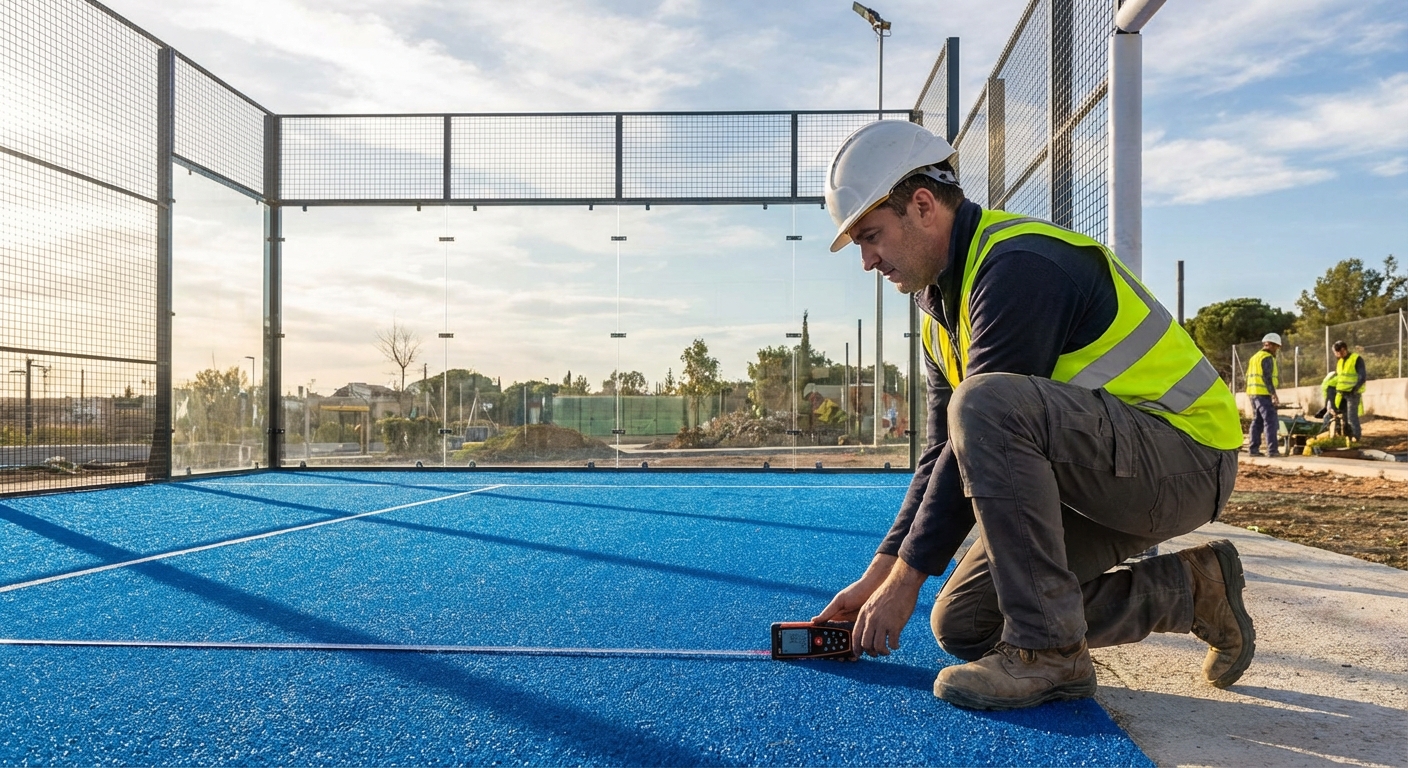

Verification of padel court measurements involves using a digital theodolite or laser level to confirm 90-degree angles at every corner. You must perform these checks before the concrete foundation is poured to ensure the perimeter beams are perfectly square. A dual-check system prevents the “trapezoid effect,” which makes glass installation impossible for your team.
Using digital measurement tools
Laser tapes provide you with high-accuracy readings for the 20-meter length and 10-meter width boundaries. You should also measure the diagonals of the court; both diagonal distances must be identical to prove the court is square.
- Corner angles: Exactly 90 degrees.
- Diagonal length: 22.36 meters.
- Surface level: Maximum 1% slope for drainage.
But wait, there is more…
Post-installation audits must verify that your support pillars are perfectly vertical to prevent the mesh from sagging over time.
Key Takeaway: Laser-guided verification is the only reliable way for you to ensure geometric and structural perfection.
| Verification Step | Recommended Tool | Target Result |
|---|---|---|
| Perimeter Check | Laser Tape | 20m x 10m |
| Corner Squareness | Digital Theodolite | 90.0° |
| Diagonal Check | Steel Tape | 22.36 m |
Do padel court measurements affect foundation depth?

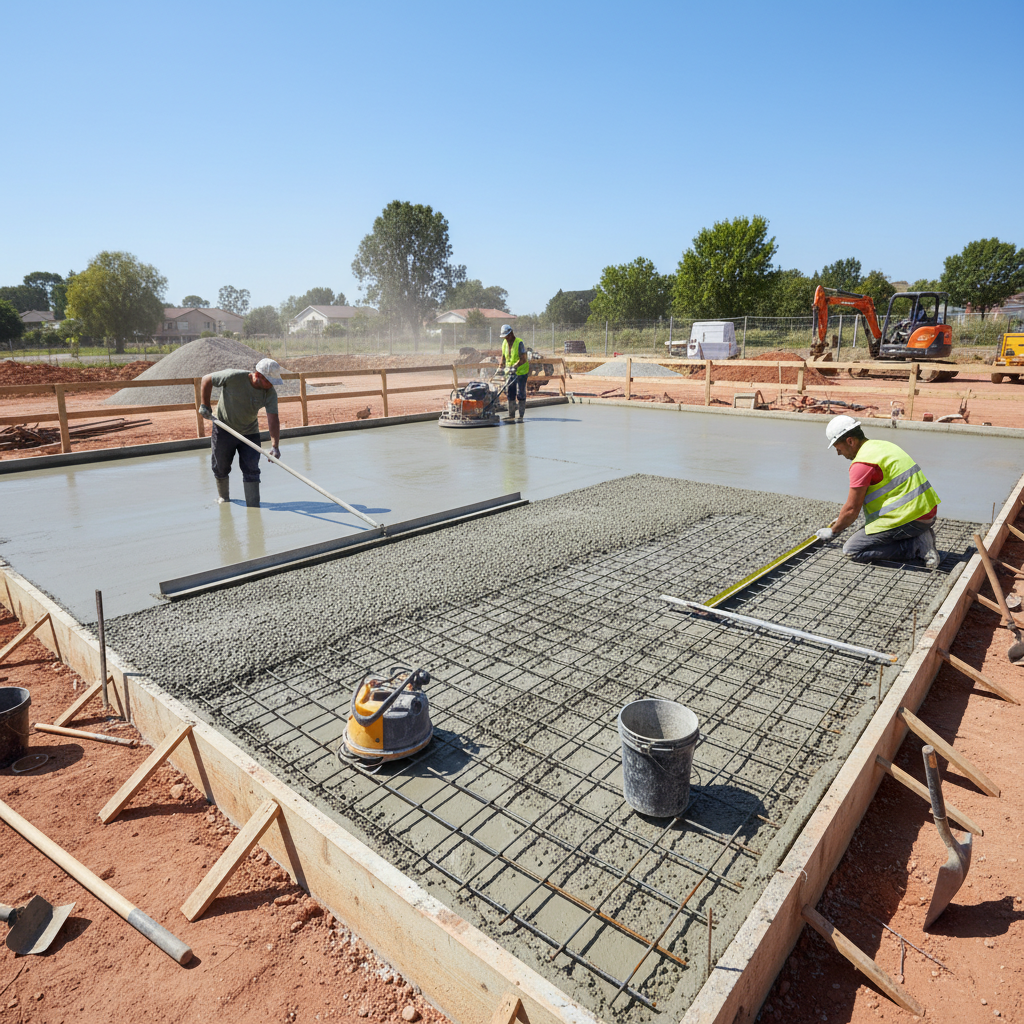

Foundation depth for padel court measurements depends on the slab’s ability to support heavy glass walls, requiring a minimum thickness of 15 to 20 centimeters. The concrete must be reinforced with steel mesh to prevent cracking under the lateral force of wind or player impact. In windy areas, your perimeter footings must be deeper to anchor the structure securely.
Concrete and reinforcement specs
Using a high-grade concrete mix ensures your surface remains level over decades of heavy use. You must also consider the sub-base layer to ensure proper load distribution across the 200sqm area.
- Slab thickness: 150mm – 200mm.
- Concrete grade: C25/30 minimum.
- Mesh reinforcement: 8mm steel or equivalent.
Look at it this way…
The foundation is the most critical part of your build because you cannot easily fix it once the concrete cures.
Key Takeaway: A reinforced 20cm slab is the standard requirement for structural longevity and player safety.
| Layer | Material | Recommended Depth |
|---|---|---|
| Top Slab | Reinforced Concrete | 150 – 200 mm |
| Hardcore Base | Crushed Stone | 200 mm |
| Sub-Soil | Compacted Earth | Varies by site |

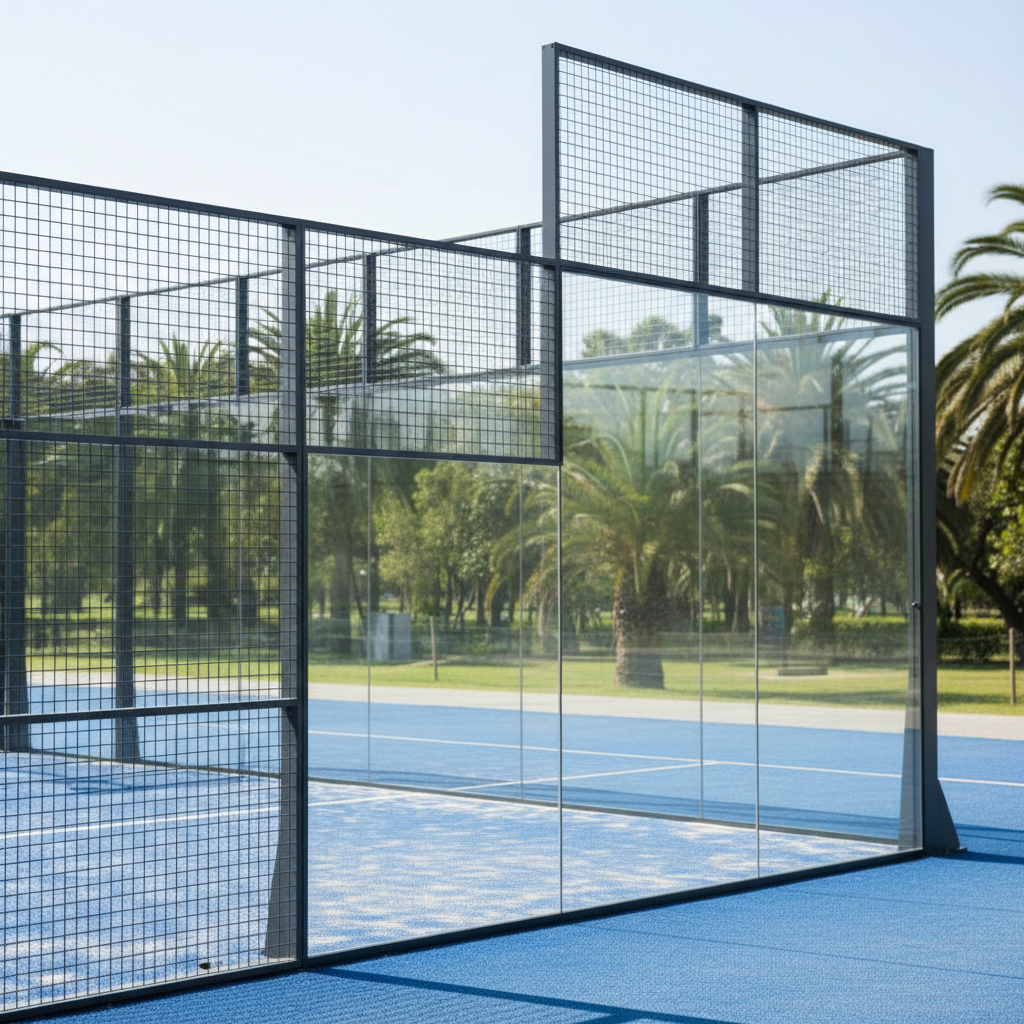

Which padel court measurements define the glass?

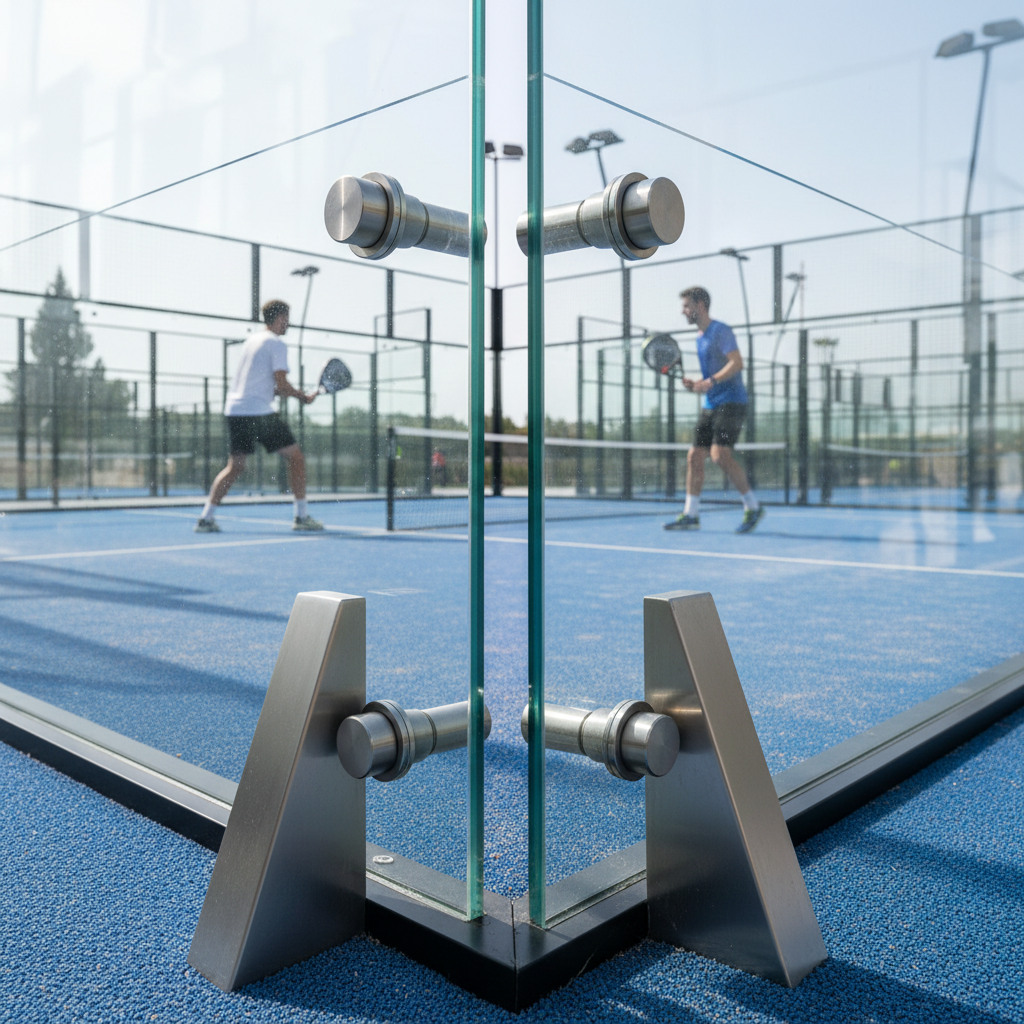

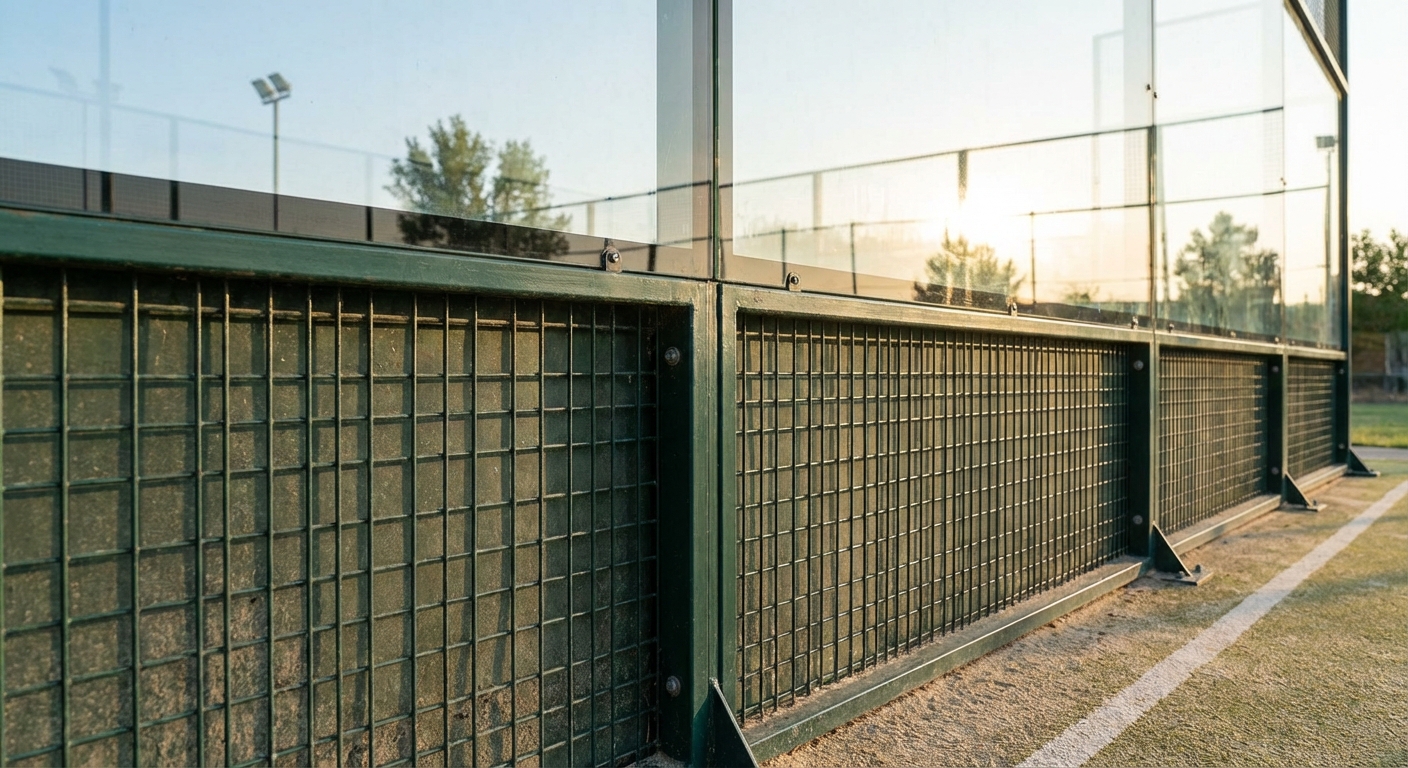

Wall padel court measurements dictate that the back glass walls must stand 3 meters high to facilitate standard strategic rebounds. The side walls follow a specific tapering pattern, starting at 3 meters and dropping to 2 meters as they move toward the net. All your glass panels must be 10mm or 12mm tempered safety glass to meet impact standards.
Tapered wall geometry
The back wall is 10 meters wide and consists of five panels, each 2 meters wide. On the sides, the glass extends 4 meters from each corner before transitioning to metallic mesh fencing.
- Back wall glass height: 3.0 meters.
- Mesh height (top): 1.0 meter (Totaling 4m at the back).
- Side glass transition: 4.0 meters from corners.
The best part is…
Using 12mm glass provides a more professional “quiet” bounce and significantly higher durability for your commercial club.
Key Takeaway: A 3-meter glass height on the back wall is mandatory for you to offer standard strategic gameplay.
| Wall Component | Material | Vertical Metric |
|---|---|---|
| Lower Rear | Tempered Glass | 3.0 m |
| Upper Rear | Metallic Mesh | 1.0 m (Total 4m) |
| Side Transition | Glass | 3.0 m to 2.0 m |
How do padel court measurements guide turf layout?

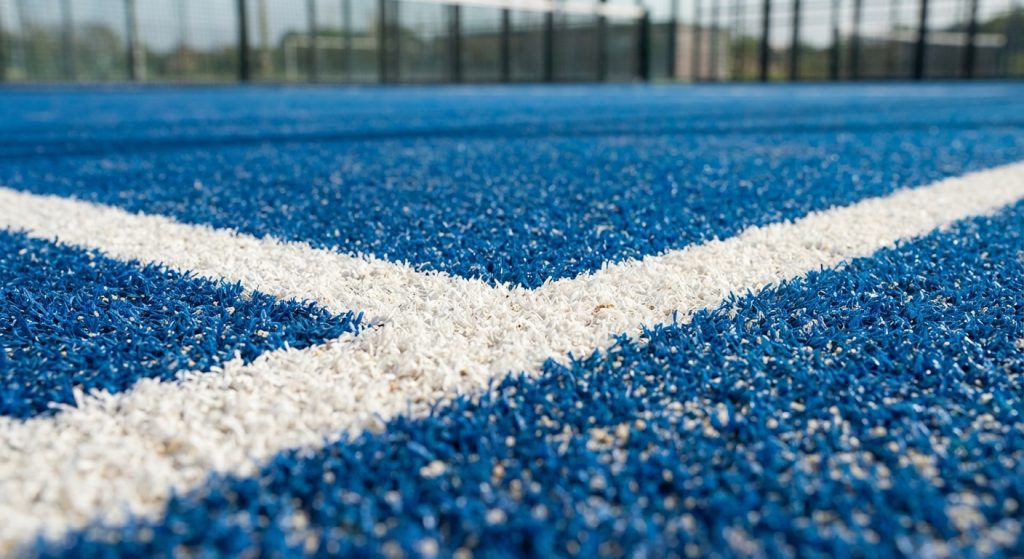

Surface padel court measurements require the synthetic turf to cover the entire 200 square meter area without any gaps or wrinkles. You must align the service lines exactly 6.95 meters from the net to maintain the game’s official serving dynamics. The central line must divide your service area into two equal rectangles.
Turf marking and infill
The turf is typically installed in rolls and then filled with silica sand to keep the fibers upright and provide you with a consistent bounce. Professional installers ensure the white lines are tufted into the grass rather than painted for long-term durability.
- Service box length: 6.95 meters.
- Service box width: 5.0 meters.
- Center line extension: 0.2 meters beyond the service line.
This is the secret…
Correct sand distribution is just as important as the turf measurements for ensuring a predictable ball bounce for your players.
Key Takeaway: Accurate 6.95m service box markings distinguish your professional courts from amateur builds.
| Turf Spec | Standard | Purpose |
|---|---|---|
| Pile Height | 12 mm | Durability/Performance |
| Sand Infill | 10-15 kg/sqm | Fiber support |
| Line Color | White / Yellow | Visual Contrast |
Are indoor padel court measurements different for height?

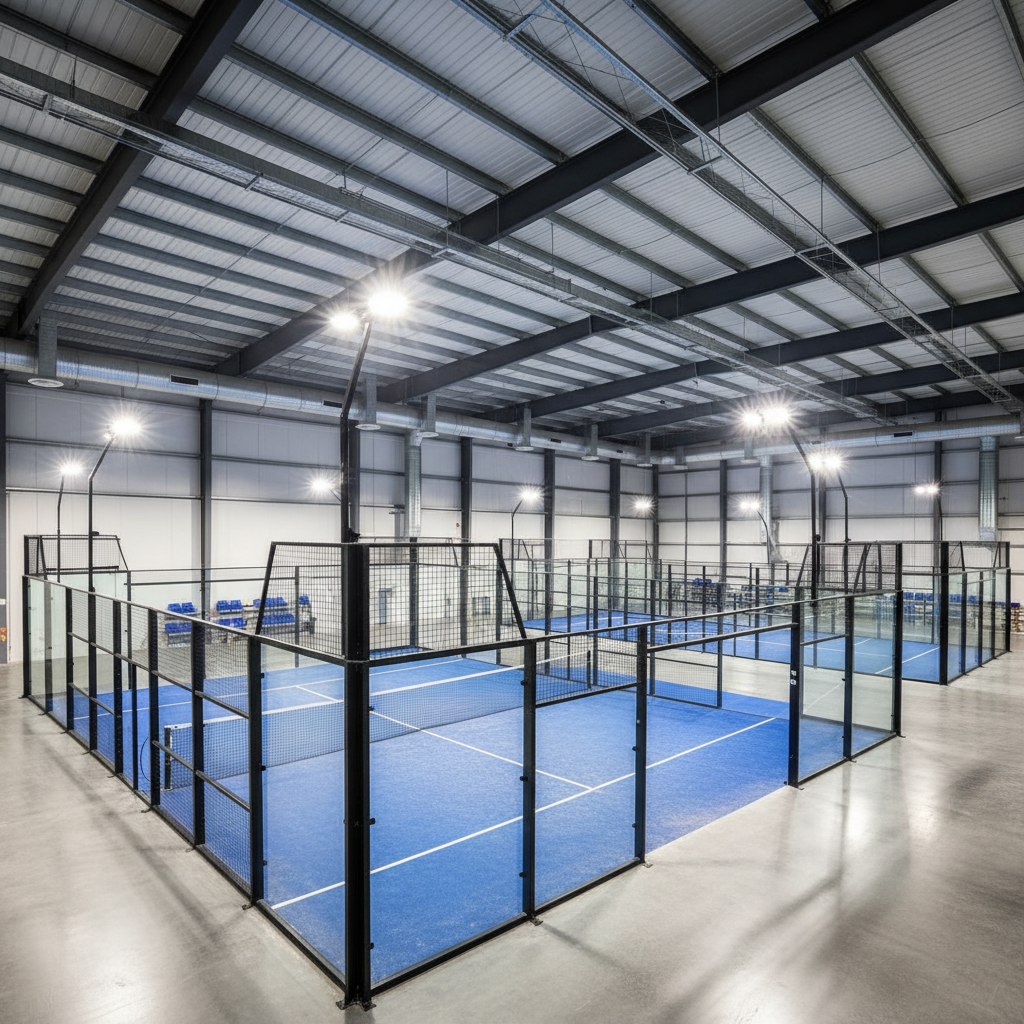

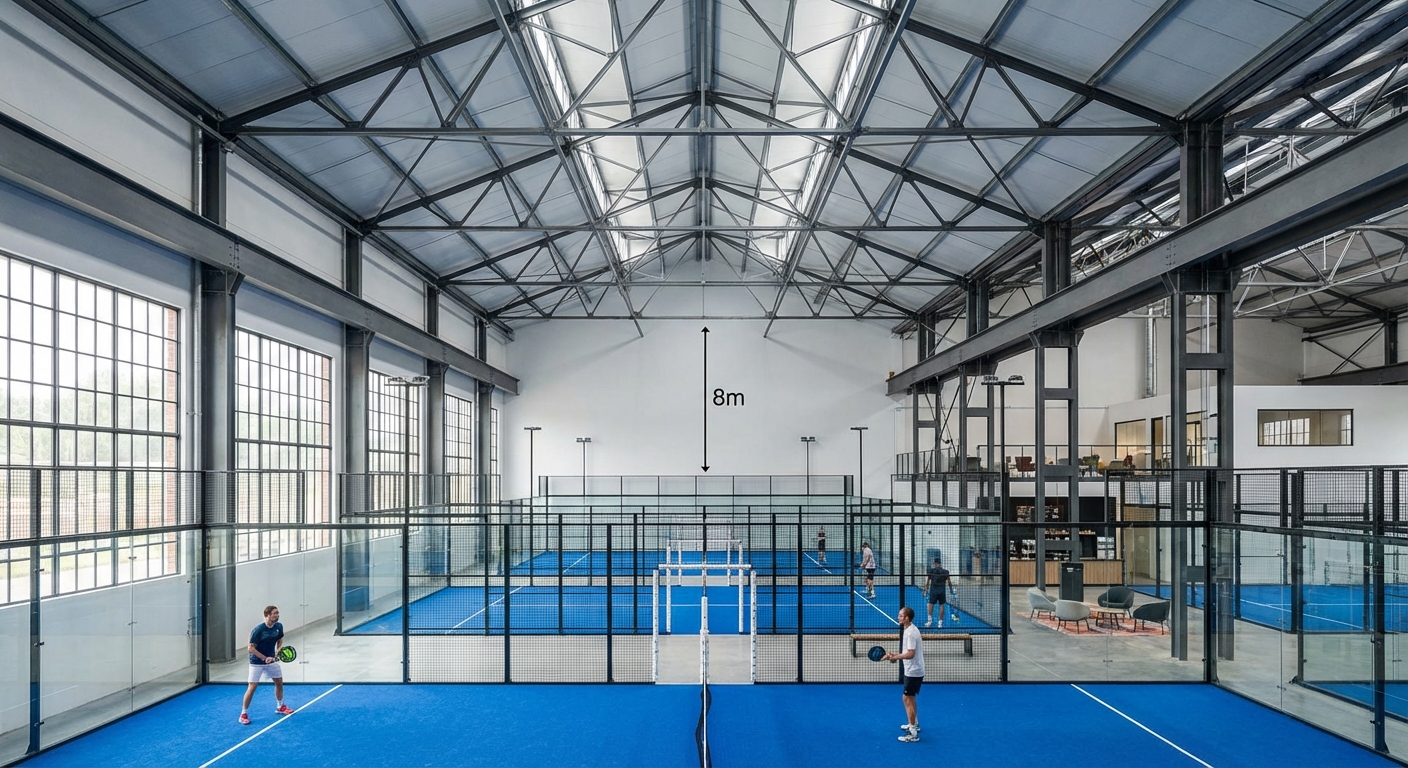

Indoor padel court measurements specify a minimum vertical clearance of 6 meters, though 8 meters is highly recommended for professional play. You must ensure that no lighting fixtures, support beams, or ventilation ducts obstruct the “lobs” or high ball trajectories. In elite venues, you will find the roof height is often much higher to accommodate high-level defensive lobs.
Vertical obstruction management
If a ball hits any part of your ceiling or a hanging fixture during play, the point is automatically lost. This makes the vertical measurement one of the most important factors you must consider when choosing a building for a new indoor club.
- Minimum height: 6.0 meters.
- Pro recommended height: 8.0 meters.
- Light fixture height: Must be outside the 6-8m zone.
You might be wondering…
What happens if your roof is too low? You simply cannot host competitive matches, as the lob becomes a dead shot for the players.
Key Takeaway: An 8-meter ceiling height is the industry standard for high-performance indoor clubs.
| Height Level | Level of Play | Suitability |
|---|---|---|
| 6.0 Meters | Beginner / Amateur | Regulated Minimum |
| 7.0 Meters | Intermediate | Good |
| 8.0+ Meters | Professional / Elite | Excellent |

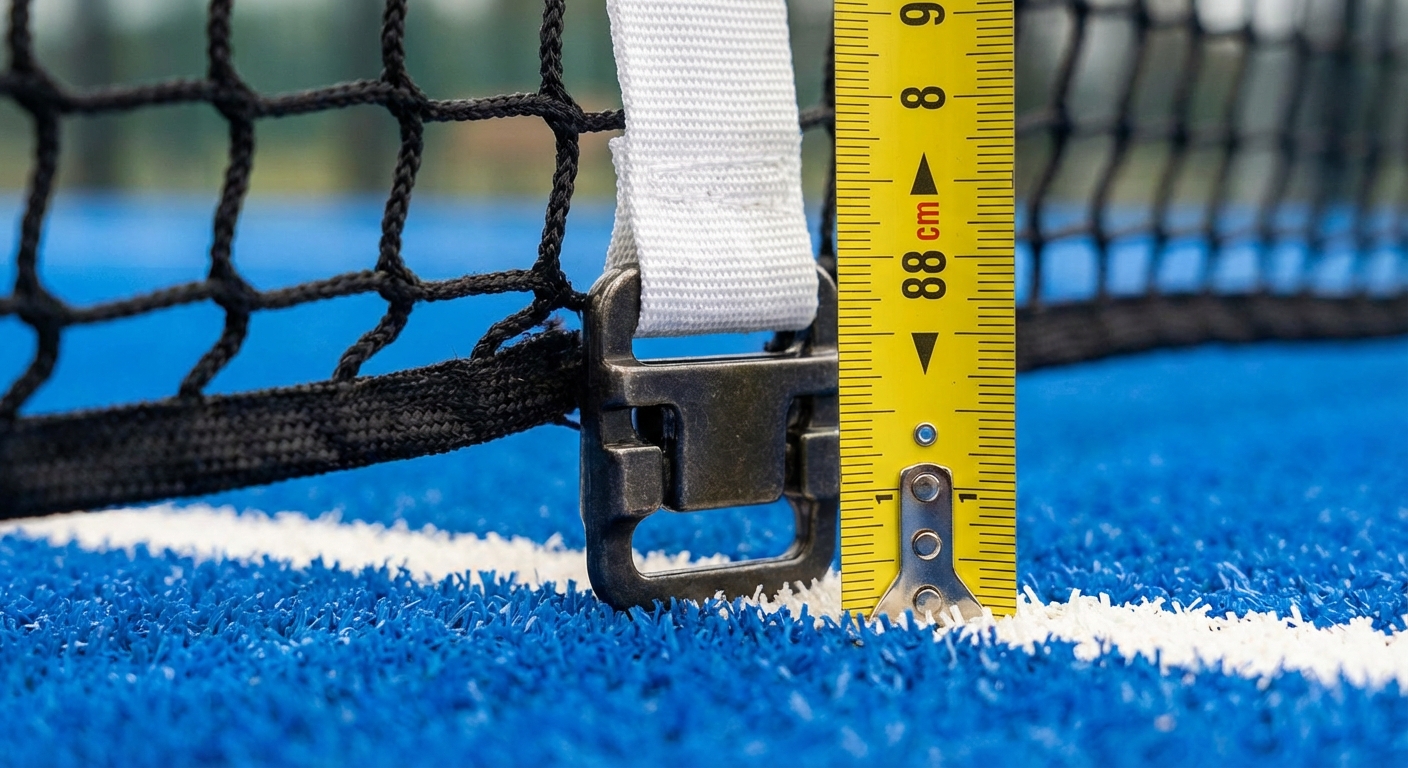

What padel court measurements regulate net tension?

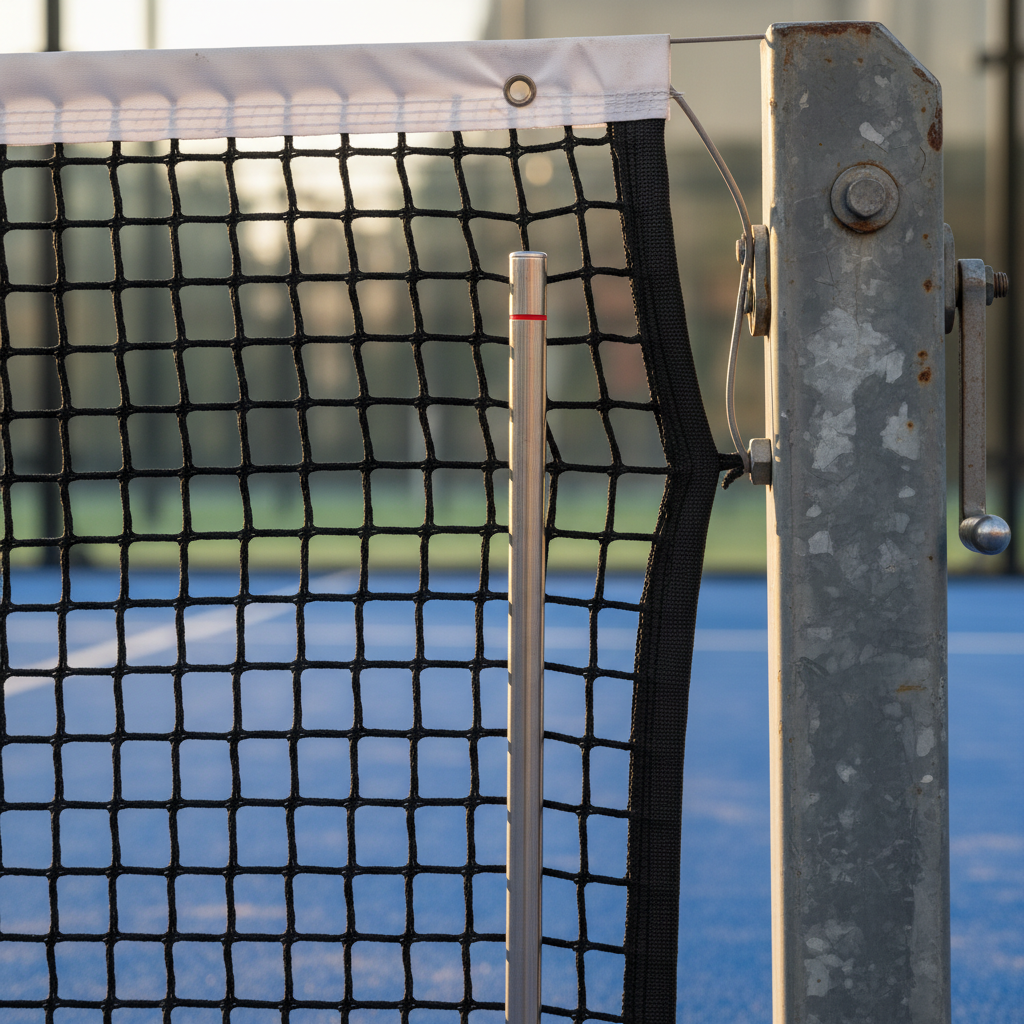

Net padel court measurements define a central height of exactly 88 centimeters, which must be maintained by a central tensioning strap. The net should span the full 10-meter width of your court and be supported by lateral posts that stand 92 centimeters high. You should check this height daily, as humidity and heavy play can cause the net to sag.
Post and cable alignment
The net posts are centered on the side boundaries and must have rounded edges for player safety. High-tension steel cables inside the top band ensure your net remains taut enough to prevent the ball from rolling over easily.
- Center net height: 0.88 meters.
- Post height: 0.92 meters.
- Post distance from center: 5.0 meters.
Here is the deal…
A loose net changes the difficulty of the game and frustrates your competitive players.
Key Takeaway: A precision-tensioned net at 88cm center height is non-negotiable for professional-grade facilities.
| Net Detail | Measurement | Tolerance |
|---|---|---|
| Center Height | 88 cm | +/- 5 mm |
| Lateral Height | 92 cm | +/- 5 mm |
| Net Length | 10 m | Exact |
Can you modify padel court measurements for homes?

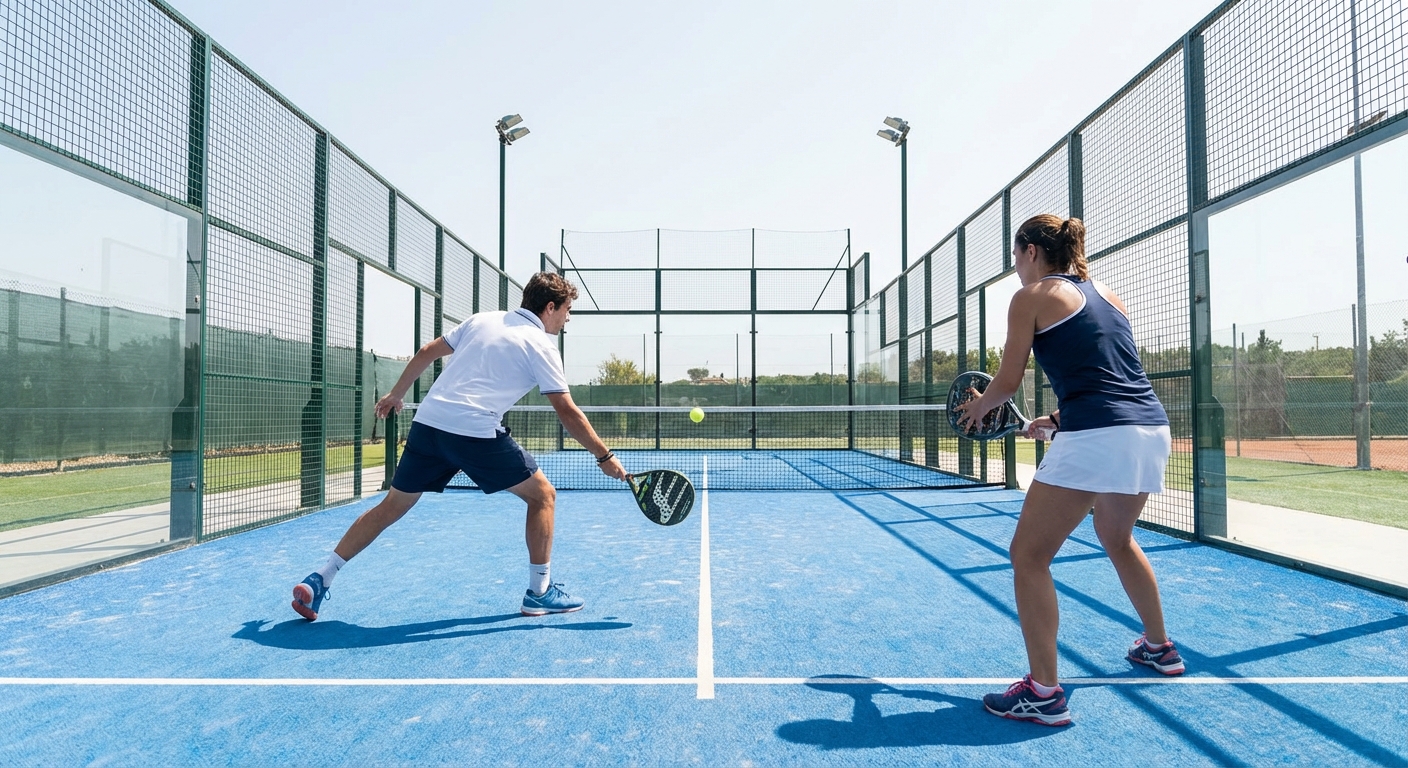

Residential builders can adapt padel court measurements to a “Single Padel” format, which usually measures 20 meters long by only 6 meters wide. This allows you to provide high-intensity training and one-on-one matches in smaller backyards or boutique hotels where space is limited. Even on these smaller courts, you should maintain the standard 4-meter wall heights for accurate physics.
Maximizing limited space
Single courts are an excellent amenity for your private villa, requiring 40% less space than a standard doubles court. They use the same materials and installation processes as professional venues, ensuring you get the same quality of play.
- Custom single width: 6.0 meters.
- Standard length: 20.0 meters.
- Space required: 120 square meters.
Let me explain…
Single courts are great for coaching and kids, but you cannot use them for standard four-player matches.
Key Takeaway: Single courts (20x6m) are the best space-saving solution for luxury residential projects.
| Model | Dimensions | Usage |
|---|---|---|
| Full Doubles | 20m x 10m | Clubs / Pros |
| Single Padel | 20m x 6m | Private / Training |
| Mini Padel | 10m x 6m | Junior / Kids |
Who provides certified padel court measurements?
Experienced manufacturers provide padel court measurements supported by technical CAD drawings and structural certifications. You should look for partners who offer comprehensive documentation for building permits and insurance. Factory-direct sourcing ensures that every component for your court is cut to the millimeter using automated CNC machinery for a perfect fit.
Documentation and OEM support
Every court shipment includes detailed installation manuals that guide your local contractors through the assembly process. This level of support ensures that your facility meets all safety standards regardless of your location or climate challenges.
- CAD drawings provided: Yes.
- Material certifications: Yes.
- Installation support: 24/7 technical assistance.
Look at it this way…
Professional technical drawings are the only way for you to guarantee building permit approval and structural safety.
Key Takeaway: Factory-direct manufacturers provide you with the best balance of technical precision and cost efficiency.
| Service | Benefit | Result |
|---|---|---|
| OEM Customization | Brand colors/logos | Unique Identity |
| Global Shipping | Factory to Site | Lower Costs |
| Engineering | Precise blueprints | Safe construction |
Building a successful padel club requires a balance of technical precision, high-quality materials, and strategic planning. We solve the common problems of structural instability and incorrect dimensions by providing factory-certified components and detailed engineering support. Our vision is to empower facility owners worldwide to build elite sports destinations that generate long-term profitability and foster community growth. By following these strict measurement guidelines, you ensure a safe and professional environment for your community. Contact us today to receive your personalized quote and technical consultation within 24 hours.
Frequently Asked Questions
Can I build a padel court on an existing tennis court?
Yes, a standard tennis court is large enough to fit two full-size padel courts, though you will need a new concrete foundation for the glass walls.
What’s the best way to maintain the 88cm net height?
Use a high-quality center strap anchored to the foundation to prevent the net from sagging during daily commercial use.
How do I know if my glass is safe for high-level play?
Verify that your manufacturer provides 12mm tempered safety glass that meets the EN 12150 European standard for impact resistance.
Can I install a padel court on a rooftop?
Yes, but you must consult a structural engineer to ensure the roof can support the significant weight of the glass panels and steel frame.
What’s the best color for the court lines?
White is the standard for blue or green turf, but yellow is often used on black or dark-colored surfaces to provide you with maximum visual contrast.
