Top 4 Features
Anti-Glare Lens Design
Optimized beam angle for visual comfort and reduced eye strain during gameplay
High Lumens Output
Up to 160 lm/W efficiency – fewer lights needed for complete court illumination
IP66 Waterproof Rating
Reliable performance in all outdoor environments and weather conditions
Long Lifespan
50,000+ hours rated LEDs from Philips or Osram for maximum durability
Experience the difference with professional-grade LED lighting technology
Technical Specifications
| Power & Performance | |
|---|---|
| Power Options | 150W / 200W / 240W |
| Beam Angle | 60°, 90°, Asymmetric |
| CCT | 5000K Daylight White |
| CRI | >80 |
| Luminous Efficacy | 160 lm/W |
| Installation & Warranty | |
|---|---|
| Mounting | Pole/Wall with adjustable bracket |
| IP Rating | IP66 Waterproof |
| Warranty | 5 Years |
| Certification | CE, RoHS, ENEC (on request) |
| Lifespan | 50,000+ hours |
Download complete technical specifications and installation guides
Lighting Simulation
Professional Lux Distribution Planning
We provide court-specific lighting simulations using advanced DIALux software to ensure optimal illumination for your padel court.
- Accurate lux levels for official matches and training
- Each court plan includes layout, height, and beam angles
- Power rating optimization for energy efficiency
- Uniformity ratio calculations for professional standards
Request a custom lighting simulation for your specific court dimensions

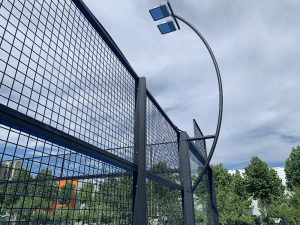

Installation Examples
Used in clubs, hotels, and tournaments in over 20 countries. Supporting panoramic and roofed padel structures with options for retrofit and new installations.
Leisure Complex - UK
Professional installation for multiple outdoor courts with uniform lighting distribution
Sports Complex - Mexico
300W LED floodlight installation for professional tournament-grade lighting
Hotel Resort - Spain
Retrofit installation replacing traditional lighting with energy-efficient LED systems
See how our LED lighting solutions transform padel courts worldwide
Power & Savings Comparison
| Technology | Power Consumption | Luminous Efficacy | Lifespan | Annual Energy Cost* |
|---|---|---|---|---|
| LED (Our Solution) | 150W–200W | 160 lm/W | 5–8 years | $180–$240 |
| Metal Halide | 250W–400W | 80 lm/W | 2–3 years | $300–$480 |
| Halogen | 400W | 25 lm/W | 1 year | $480 |
Energy Savings Result
*Based on 8 hours daily operation, $0.15/kWh electricity rate - Calculate your specific savings with our energy calculator
Certifications & Testing
CE Certified
European Conformity certification for safety and performance standards
RoHS Compliant
Restriction of Hazardous Substances compliance for environmental safety
IES Files Available
Photometric data files for accurate lighting simulation and design
100% Factory Tested
Every unit undergoes rigorous testing before packaging and shipping
Additional Certifications Available
- ENEC (on request)
- UL Listed (for US market)
- FCC Compliance
- IP66 Rating Certificate
Download certification documents and compliance reports
Trusted by Professionals Worldwide
"Frames arrived scratch-free and installed in 4 hours."
"30% cost saving compared with local supplier."
"Hot-dip galvanised finish still perfect after two winters."
Join our growing list of satisfied global partners.
Become Our Next Success StoryFrequently Asked Questions
Yes, we provide 60°, 90°, and asymmetric beam angle options. Our lighting engineers will recommend the optimal configuration based on your court dimensions, pole height, and lighting requirements.
Mounting poles can be quoted separately upon request. We provide custom pole specifications based on your installation requirements and local wind load regulations.
Yes, all our LED models are IP66 waterproof rated and feature low-glare design, making them suitable for both indoor and outdoor installations, including roofed courts.
The recommended installation height is 6–8 meters for standard padel courts. The exact height depends on your court dimensions, desired illumination levels, and beam angle selection.
Yes, we offer complimentary DIALux lighting plans for every court project. This includes lux distribution maps, uniformity calculations, and optimal fixture placement recommendations.
Have a different question? Our experts are here to help.
Contact UsReady to Illuminate Your Padel Court?
Get professional LED lighting solutions with expert support and competitive pricing
Contact our lighting specialists for customized solutions and competitive quotes
